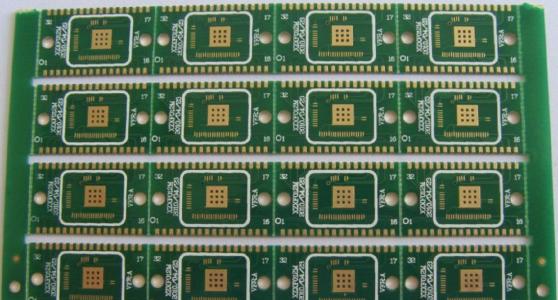

  • PCB circuit board sampling process

    2023-09-09

    519






      1、 Contact the manufacturer

      Firstly, it is necessary to inform the manufacturer of the documents, process requirements, and quantity. Regarding "What parameters do you need to provide for PCB circuit board sampling to the manufacturer?" You can click on this article to learn and provide the necessary information. Then, professionals will provide you with quotations, place orders, and follow up on the production progress.

      2、 Material cutting

      Purpose: According to the requirements of the engineering data MI, cut into small production pieces on large sheets that meet the requirements, and produce small pieces that meet the customer's requirements.

      Process: Large plate material → Cutting according to MI requirements → Curing plate → Fillet angle/edge grinding → Plate discharge

      3、 Drilling

      Purpose: Based on engineering data, drill the required hole diameter at the corresponding position on the sheet material that meets the required size.

      Process: Stacking pin → Upper plate → Drilling → Lower plate → Inspection/repair
